NetWizz Slim Auto Tension

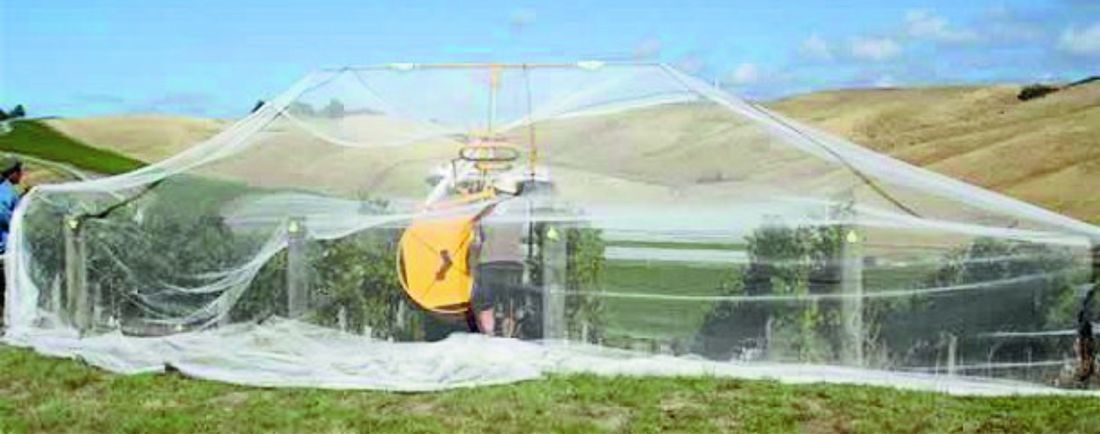

Netwizz Slim Auto Tension, covering five rows (old model pictured)
"NetWizz Slim Auto Tension" is a machine for applying and removing bird netting in small vineyards, orchards and anywhere crop cover is required. Netting is wound onto a simple spindle in an inter-woven pattern like a roll of twine.
Key Benefits
  • Automatic speed and netting tension
  • Narrow width 1.1m
  • Economically priced
  • Fast, safe removal of netting without tears
  • Netting wound tight on steel spindles
  • For single and multiple row or full canopy cover netting
  • Self-loading and unloading of netting rolls
  • Shear pin protection for top loop & mast
  • Very compact & safe design

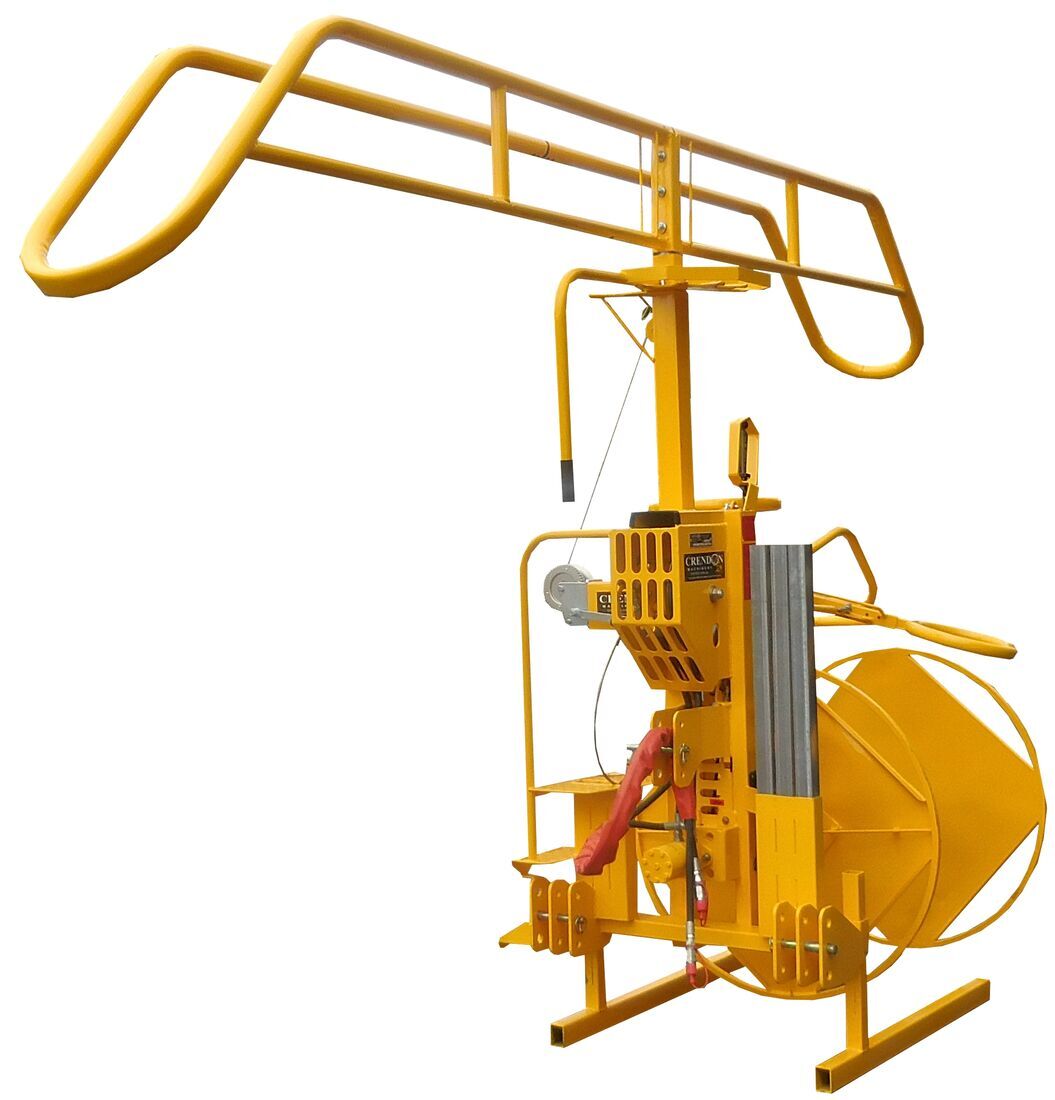

NetWizz Slim, Mast raised to full height

NetWizz Slim, Mast rotated 90º for transport

Mast is raised & lowered by a winch and pinned at 3 height settings. Mast is rotated and pinned at 5 positions from 0º to 90º. The top loop is now the same as Std NetWizz making applying netting much easer.

Spindle end covers are slid onto the spool then the tractor drives the spike through the spindle. The tractors 3PL is then raised and spindle is pinned in position.

There is a side platform with steps & hand rail to safely access mast rotating pin & other adjustments. There are holders for 6 empty spindles

Fast, safe removal of netting without tears

If netting gets caught the sensor automatically stops the spindle, preventing tears. The sensor automatically adjusts the spindle and wand speed to maintain a constant incoming net tension.

This unique sensor system greatly prolongs the life of netting.

Netting tension remains constant, no matter what size roll is being wound up or the tractor's ground speed.

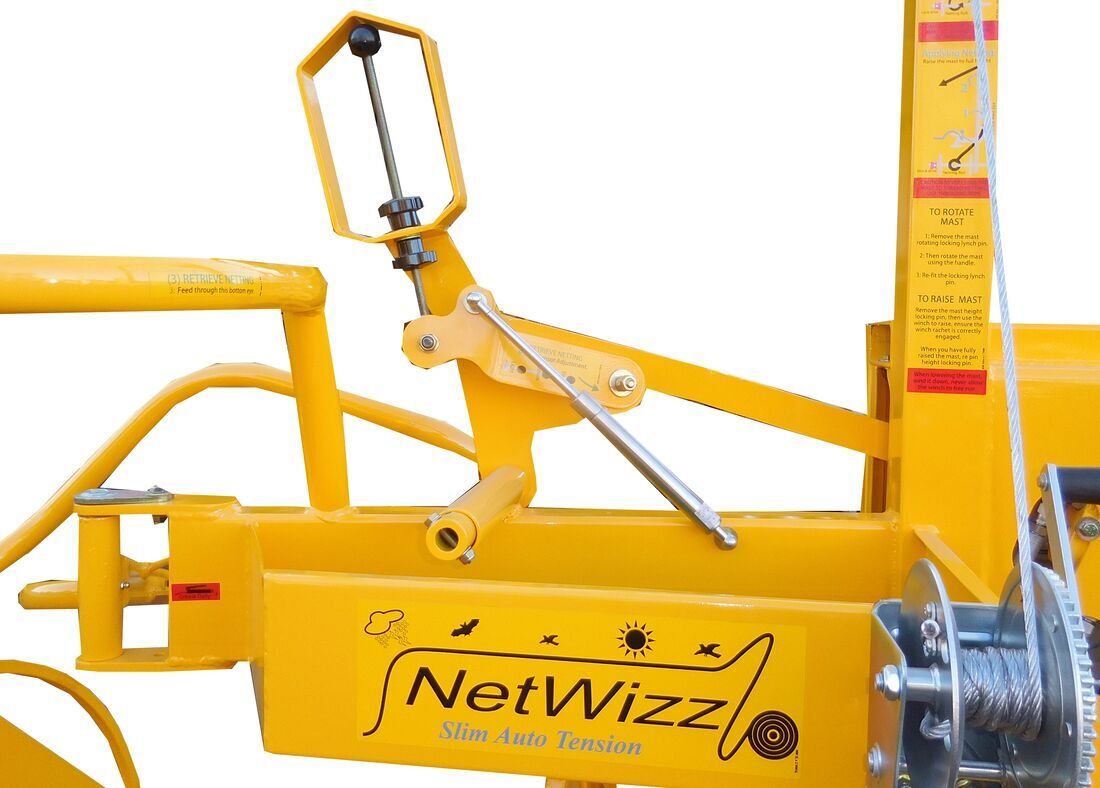

Auto tension setting is easily adjusted via an adjustment wing nut. Gas strut is stainless steel

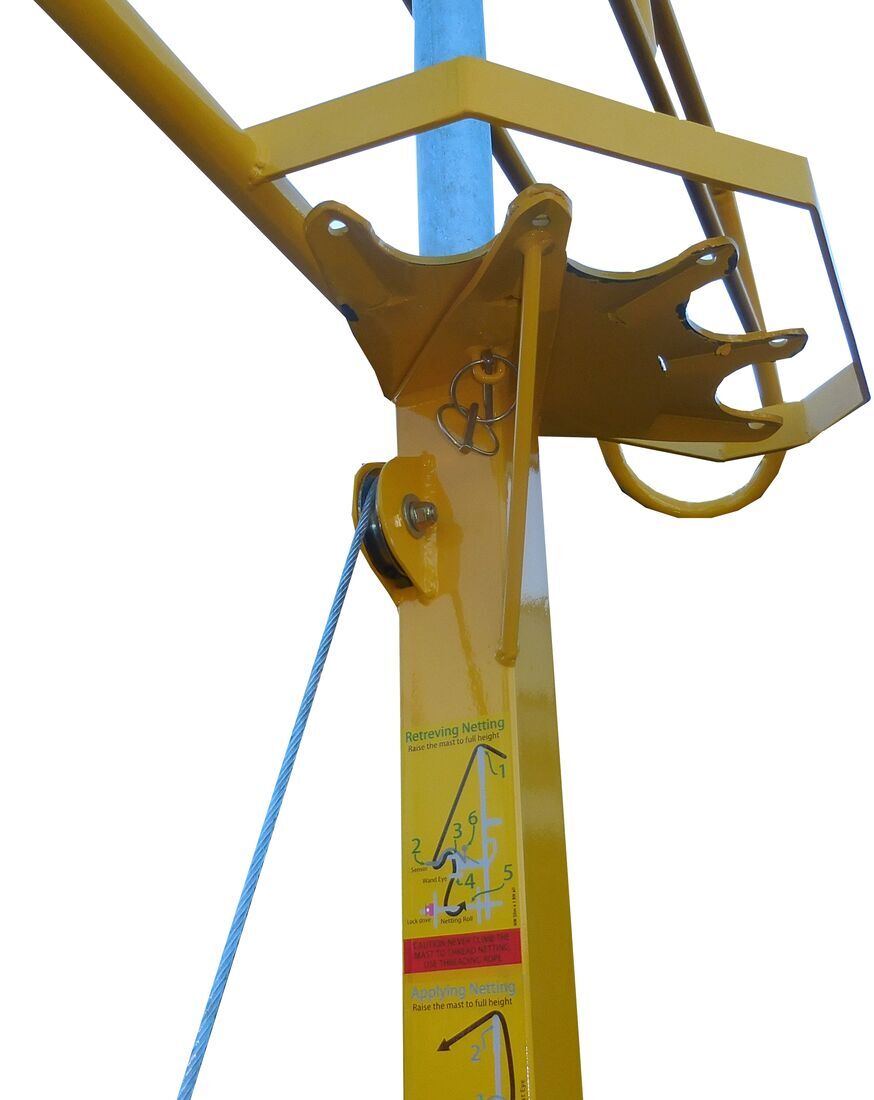

shear bolt protection for top loop & mast

The NetWizz mast incorporates a shear pin assembly which breaks, preventing the top loop and mast from damage.

To work around power poles, trees and for transport the top loop easily rotates 90º.

The mast is rotated and pinned at 5 positions from -22º to 90º.



Self loading and unloading of netting rolls

Full spindles are loaded using the tractor’s 3PL. The tractor is simply reversed into the roll, with the aid of a taper on the drive shaft, then raised with the linkage.

In the standard short setting 1.1m spindles, the roll of netting can be up to 15m wide x 200m long. In the long setting 1.4m spindles, the roll of netting can be up to 20m wide x 300m long.

The steel spindles protrude from the end of the roll enabling easy safe mechanical handling.

Roll Spike

Efficient handling of netting rolls.

A roll spike is available, which is clamped to fork-lift or front-end loader forks and is then inserted into the spindle. This system allows rolls to be stacked on top of each other for safe and very compact storage. It is strongly recommended when handling large rolls of netting.    (OPTIONAL EXTRA)



NetWizz Brochure
Read More
Netting Suppliers
Read More

NetWizz Specifications

Click on the model to go to that page
NetWizz Slim Auto Tension

Netwizz-Slim-Auto-Te1.jpg - large

NetWizz Std Auto Tension

Netwizz-Standard-Was1.jpg - large

NetWizz High Lift Auto Tension

Netwizz-Hi-Lift-Mast1.jpg - large

NetWizz High Lift Swivel Mast Auto Tension

Netwizz-Hi-Lift-Swiv1.jpg - large

Ground Speed
0 to 4 kph 0 to 4 kph 0 to 4 kph 0 to 4 kph
Spindle length
1.1m or 1.4m 1.1m or 1.4m 1.1m or 1.4m 1.1m or 1.4m
Mast height
2.6m to 4.5m 2.6m to 4.5m 1m to 6.5m 1m to 6.5m
Mast roration
-30º, 0º, 30º, 60º, 90º 0º, 15º,30º, 45º, 60º, 75º, 90º and every 15º total 360º 0º, 15º,30º, 45º, 60º, 75º, 90º and every 15º total 360º 0º, 15º,30º, 45º, 60º, 75º, 90º and every 15º total 360º
Top loop width
4.9m double sided 4.9m double sided telescopic from 3.5m to 11m telescopic from 3.5m to 11m
Netting roll capacity Approx
Narrow setting 15m x 200m,  Wide setting 15m x 300m Narrow setting 15m x 200m,  Wide setting 15m x 300m Narrow setting 15m x 200m,  Wide setting 15m x 300m Narrow setting 15m x 200m,  Wide setting 15m x 300m
Hydraulic Requirements
1 pair of remotes; 170 bar 16 lt/min (2,500 psi 4 g.p.m. (min) 1 pair of remotes; 170 bar 16 lt/min (2,500 psi 4 g.p.m. (min) 2 pairs of remotes; 170 bar 16 lt/min (2,500 psi 4 g.p.m. (min) 2 pairs of remotes; 170 bar 16 lt/min (2,500 psi 4 g.p.m. (min)
Frame Width

working; 1.15m

transport;  1.15m

working; 1.5m

transport;  1.55m

working; 1.5m

transport;  1.55m

working; 1.5m

transport;  1.55m

Frame Length

working; 1.7m

transport;  1.15m

working; 1.9m

transport;  1.6m

working; 1.9m

transport;  1.6m

working; 1.9m

transport;  1.6m

Frame Height

working; from 2.6m

transport; 2.45m

working; from 2.6m

transport; 2.45m

working; from 2.6m

transport; 2.45m

working; from 2.6m

transport; 2.45m

Frame Total Weight
 300 kg approx. 400 kg approx  500 kg approx 550 kg approx
