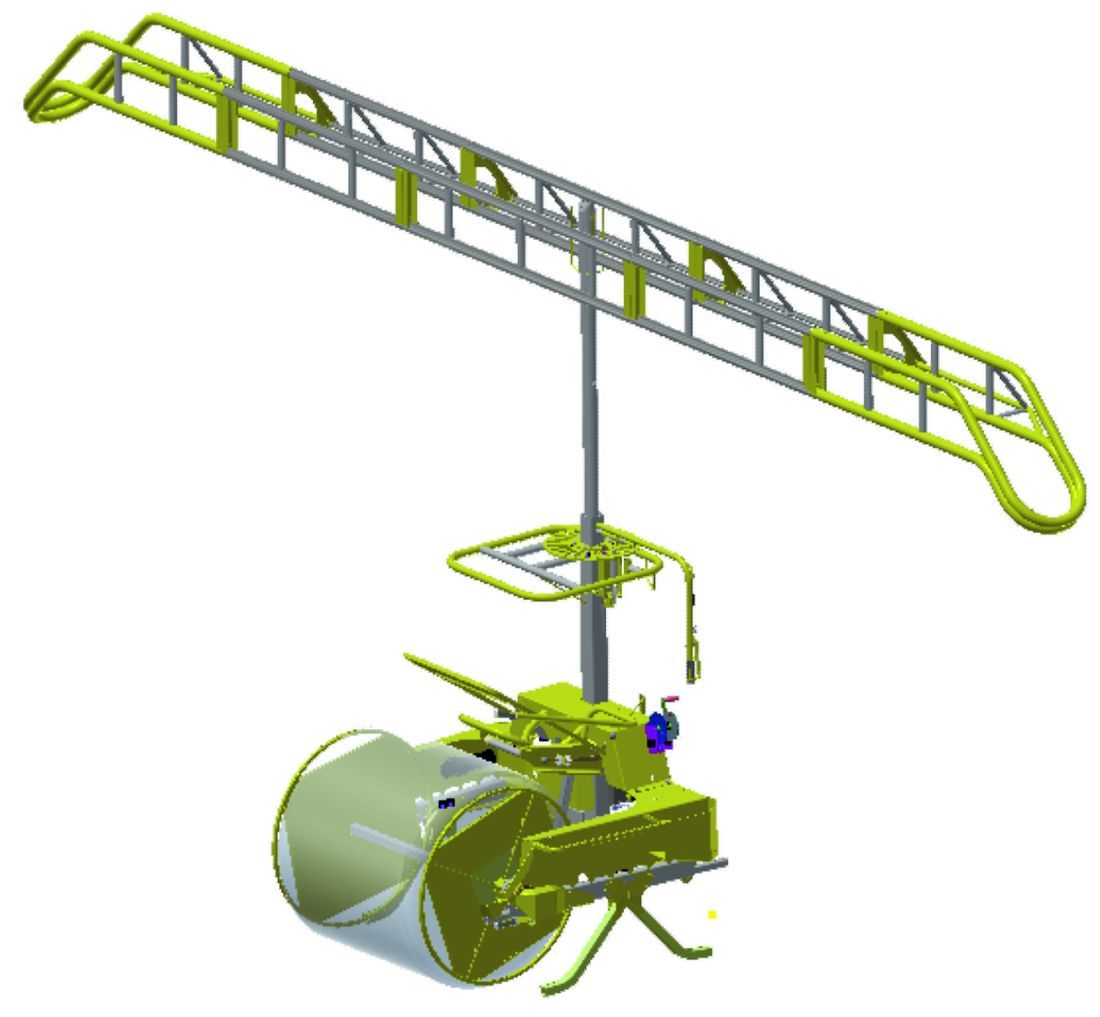

NetWizz Standard Mast Wide Top Loop Auto Tension

"NetWizz Std Wide Top Loop Auto Tension" is a machine for applying and removing wide bird netting in large vineyards. Netting is wound onto a simple spindle in an inter-woven pattern like a roll of twine.

The bottom frame is same as Std NetWizz this bottom frame is already made very heavy duty. The differences are.

The wand is now driven via small hydraulic motor directly coupled to a worm drive gear box with shear bolt on the output shaft. This provides excellent shaped rolls every time.

The Strong Top Loop is bolted together to make a 8.5m or 5.5m wide loop.

The mast is made from thicker steel tube because of the heaver top loop

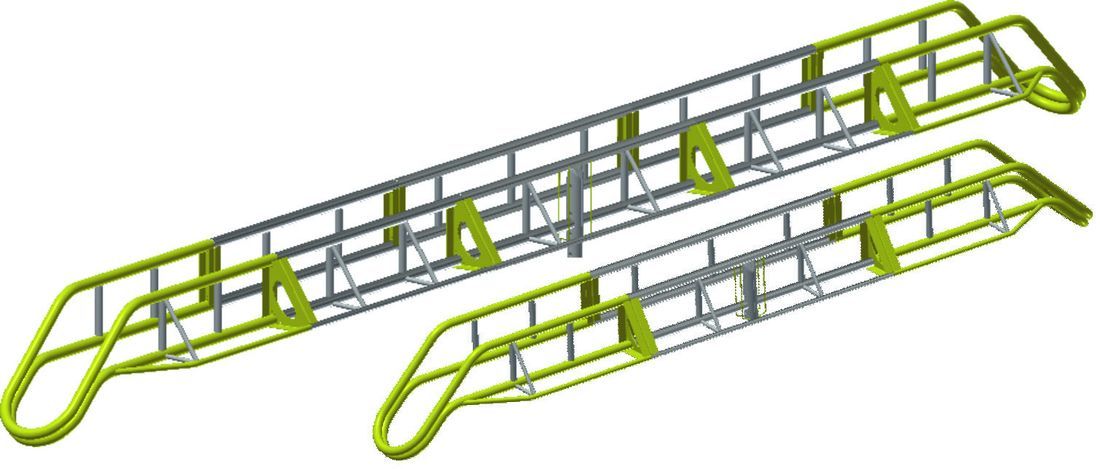

8.5m / 5.5m heavy duty top loop

A heavy duty wide top loop is available for the Std mast NetWizz. This is the same used on the Slim Heavy Duty model. This is strongly recommended when using netting 20m or wider.

Fast, safe removal of netting without tears

If netting gets caught the sensor automatically stops the spindle, preventing tears. The sensor automatically adjusts the spindle and wand speed to maintain a constant incoming net tension.

This unique sensor system (with rollers) greatly prolongs the life of netting.

Netting tension remains constant, no matter what size roll is being wound up or the tractor's ground speed.

Shear bolt protection for top loop & mast

The NetWizz mast incorporates a heavy duty shear bolt assembly which breaks a small bolt, preventing the top loop and mast from damage. This arrangement is now a lot heavier than before, Ø24 pin in 10mm plate

To work around power poles, trees and for transport, a spring loaded rotating pin is disconnected allowing the mast assembly to rotate.
All model masts can rotate a full 360º and can be auto-pinned at 15º intervals.

The mast is telescopic and is raised and lowered using its winch and can be locked at 3 height settings.

Self loading and unloading of netting rolls

Full spindles are loaded using the tractor’s 3PL. The tractor is simply reversed into the roll, with the aid of self-locating guides, then raised with the linkage. If required, an extra roll of netting can be carried on the two arms which slide out.

In its standard narrow setting (shown above), the larger roll is 15m wide x 300m long, the smaller being 10m wide x 100m long both on 1.1m long spindles.

The steel spindles protrude from the end of the roll enabling easy safe mechanical handling.

The new NetWizz models are easy to adjust in width from:
1.15m outside wide for long distance transport
1.1m spindle length setting (1.55m outside)
1.4m spindle length setting (1.85m outside) as pictured on left
The sides now have 45º deflection to brush overhanging branches and vines to avoid catching.

Automatic speed and netting tension

Netting tension is easily adjusted (by turning a screw) to suit different strength nets. Once the tension has been set to suit the netting there is no need to adjust it again.

All the tractor driver has to do is drive down the row and stop only if the netting becomes caught up on the vine trellis. No controls need to be adjusted while driving (retrieving or applying netting).

Netting wound tight on steel spindles

Netting is stored from the vine on square steel spindles and end covers are fitted when in use. These covers have high sides and large sealed ball bearings for easy operation.

New netting supplied in bags or on narrow rolls can be applied straight over the vine with the NetWizz without the need to first wind onto spindles.

The NetWizz comes with 8 x 1.4m spindles which are stored in the holder. These spindles are 50mm square x 1.6mm thick, being 1.1m long for standard setting and 1.4m for the wide setting.

Controlled net unrolling tension

When feeding out netting to cover the vines, the spindle hydraulic drive is simply disengaged which allows the net to unroll. A brake can be lowered onto the roll, allowing it to unroll at a set light tension regardless of diameter and also prevents over-run.



Improvements

After 20 years, we have redesigned all NetWizz models. Frames are now much stronger, hydraulic motors 40% more powerful & 25% faster winding, top loop and mast from bigger steel, spindle drive coupling stronger, spindle covers stronger,  bottom steel side & top plate now twice as thick, more compact, safer, easier to operate. The bottom frame is the same for Standard Mast Auto tension, High Lift Auto tension and High Lift Swivel Head Auto tension models.

NetWizz Slim Auto Tension
For small to medium vineyards and orchards
Read More
NetWizz Slim HD Auto Tension
For applying and removing wide netting in narrow vineyard rows.
Read More
NetWizz Standard Mast Auto Tension
For medium to large vineyards, orchards and crop cover applications
Read More
NetWizz Hi-Lift Mast Auto Tension
For medium to large vineyards, orchards and crop cover
Read More
NetWizz Hi-Lift Swivel Mast Auto Tension
For orchards - single & two row cover applications
Read More
NetWizz Brochure
Read More
Netting Suppliers
Read More

NetWizz Specifications

Click on the model to go to that page
NetWizz Slim Auto TensionNetwizz-Slim-Auto-Te1.jpg - large
NetWizz Slim HD Auto Tension

NetWizz Std Auto Tension

Netwizz-Standard-Was1.jpg - large

NetWizz High Lift Auto Tension

Netwizz-Hi-Lift-Mast1.jpg - large

NetWizz High Lift Swivel Mast Auto Tension

Netwizz-Hi-Lift-Swiv1.jpg - large

Ground Speed
0 to 4 kph 0 to 4 kph 0 to 4 kph 0 to 4 kph 0 to 4 kph
Spindle length
1.1m or 1.4m 1.1m or 1.4m 1.1m or 1.4m 1.1m or 1.4m 1.1m or 1.4m
Mast height
2.6m to 4.5m 2.6m to 4.5m 2.6m to 4.5m 1m to 6.5m 1m to 6.5m
Mast roration
-30º, 0º, 30º, 60º, 90º -30º, 0º, 30º, 60º, 90º, 120º 0º, 15º,30º, 45º, 60º, 75º, 90º and every 15º total 360º 0º, 15º,30º, 45º, 60º, 75º, 90º and every 15º total 360º 0º, 15º,30º, 45º, 60º, 75º, 90º and every 15º total 360º
Top loop width
4.9m double sided 8.5m & 5.5m double sided 4.9m double sided telescopic from 3.5m to 11m telescopic from 3.5m to 11m
Netting roll capacity Approx
Narrow setting 15m x 200m,  Wide setting 15m x 300m Narrow setting 15m x 200m,  Wide setting 15m x 300m Narrow setting 15m x 200m,  Wide setting 15m x 300m Narrow setting 15m x 200m,  Wide setting 15m x 300m Narrow setting 15m x 200m,  Wide setting 15m x 300m
Hydraulic Requirements
1 pair of remotes; 170 bar 16 lt/min (2,500 psi 4 g.p.m. (min) 1 pair of remotes; 170 bar 16 lt/min (2,500 psi 4 g.p.m. (min) 1 pair of remotes; 170 bar 16 lt/min (2,500 psi 4 g.p.m. (min) 2 pairs of remotes; 170 bar 16 lt/min (2,500 psi 4 g.p.m. (min) 2 pairs of remotes; 170 bar 16 lt/min (2,500 psi 4 g.p.m. (min)
Frame Width

working; 1.15m

transport;  1.15m

working; 1.1m

transport;  1.11m

working; 1.5m

transport;  1.55m

working; 1.5m

transport;  1.55m

working; 1.5m

transport;  1.55m

Frame Length

working; 1.7m

transport;  1.15m

working; 1.7m

transport;  1.15m

working; 1.9m

transport;  1.6m

working; 1.9m

transport;  1.6m

working; 1.9m

transport;  1.6m

Frame Height

working; from 2.6m

transport; 2.45m

working; from 2.6m

transport; 2.45m

working; from 2.6m

transport; 2.45m

working; from 2.6m

transport; 2.45m

working; from 2.6m

transport; 2.45m

Frame Total Weight
 300 kg approx. 420 kg approx. 400 kg approx  500 kg approx 550 kg approx
