Galtech Q45 double spool, cylinder double acting spool. 40 l/pm 1/2" BSP ports with relief valve

VHCG2S

Galtech Q45 single spool, cylinder double acting spool. 40 l/pm 1/2" BSP ports with relief valve

VHCG1S

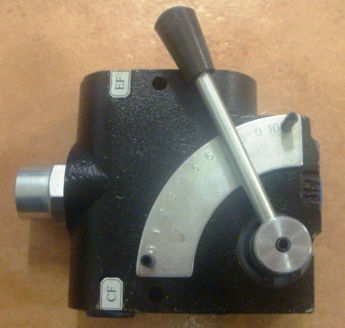

Flow Control valve 16 G/PM 1/2" BSP ports with relief valve

VFC16G12CH

Electric change over valve

6 port 12DC, 1/4" BSP ports

VS6PE14CH

Flow splitter

complete 3/8"BSP ports, 100% in then split 25% : 75%

VFD4:1CH

Relief valve

Inline 3/8" BSP ports for 600 - 3,500 psi, other sizes stocked

VR38IL20

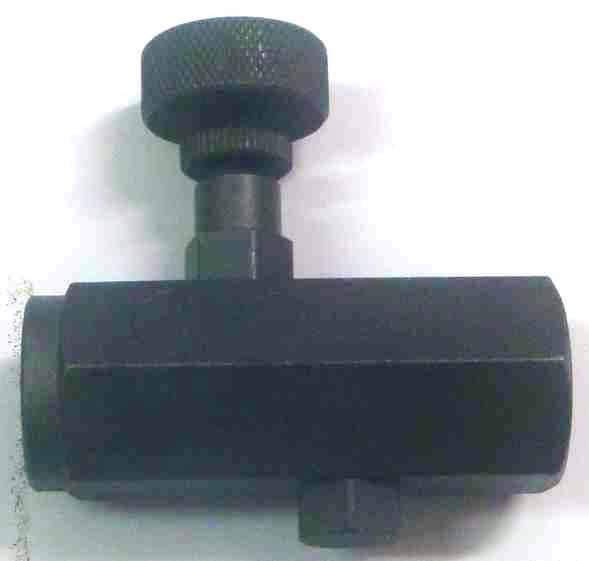

Needle/check Valve

3/8" BSP ports

VNC38

Change over valve

4 Way  3/8"BSP  ports, open centRe

VD4WAY3/8OPEN

Change over valve

4 Way,  3/8" BSP ports, closed centRe

VD4WAY3/8

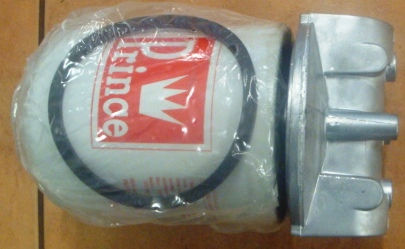

ilter head & element

PRINCE (small) 3/4" BSP ports

FHFA1200-10

Filter head & element

PRINCE (large 130mm diametre) 1 ¼" BSP ports

FHFB1100-10

Hydraulic Motor

1” parallel shaft, ¼ Key, 2 bolt flange, 7/8UNF ports, 200 bar shaft seals

80cc

MHCBMRS802B1S

100cc

MHCBMRS1002B1S

250cc

MHCBMRS2502B1S

400cc

MHCBMRS3952B1S

Hydraulic Motor

1” splined 6B shaft for planetary wheel hubs,  2 bolt flange, 7/8UNF ports, 200 bar shaft seals

125cc

MHCBMRS125SAE6B

160cc

MHCBMRS160SAE6B

200cc

MHCBMRS200SAE6B

Hydraulic Motor

1” parallel shaft, ¼ Key, 4 bolt flange, 7/8UNF ports, 200 bar shaft seals

100cc

MHCBMRS1004B1S

Hydraulic Motor

1¼” parallel shaft,  5/16Key, 4 bolt flange, 7/8UNF ports, 200 bar shaft seals

125cc

MHCBMER125

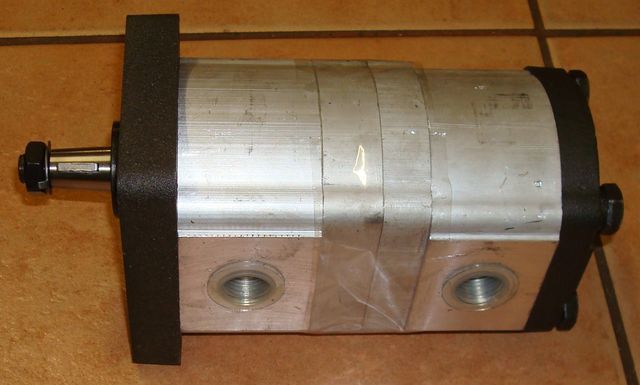

Hyd Pump Double

6+4cc Group 2 4 bolt flange ½” BSP ports Cast iron end.

PHDAM6/4CICH

Hydraulic Hose

SAE 100R 16

Double braid hose, high pressure rating, small minimum bend rating.

Better than std Double braid hose

1/4"

HHCM14

3/8"

HHCM38

1/2"

HHCM12

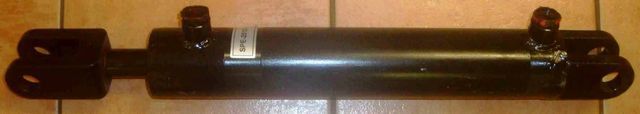

Hydraulic Rams

3/4" pins, 3/8" BSP ports, 10,000 psi seals, nylon wear rings, industrial quality

Ram 10"x2"

RCH10X2X1

Hydraulic Rams

1" clevis & pins, 3/4" UNF ports, 10,000 psi seals, nylon wear rings, industrial quality

Ram 8"x2.5"

RCH08X2.5X1.25

Ram 12"x2.5"

RCH12X2.5X1.25

Ram 16"x2.5"

RCH16X2.5X1.25

Ram 18"x3.5"

RCH18X3.5X2

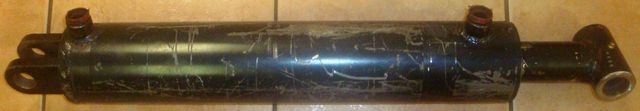

Hydraulic Rams

1" clevis & pins at base, 90mm x 32mm on push rod, 3/4" UNF ports, 10,000 psi seals, nylon wear rings, industrial quality

Ram 16"x3.5"

RCH16X3.5X2

Ram 24"x3.5"

RCH24X3.5X2

Ram 30"x3.5"

RCH30X3.5X2

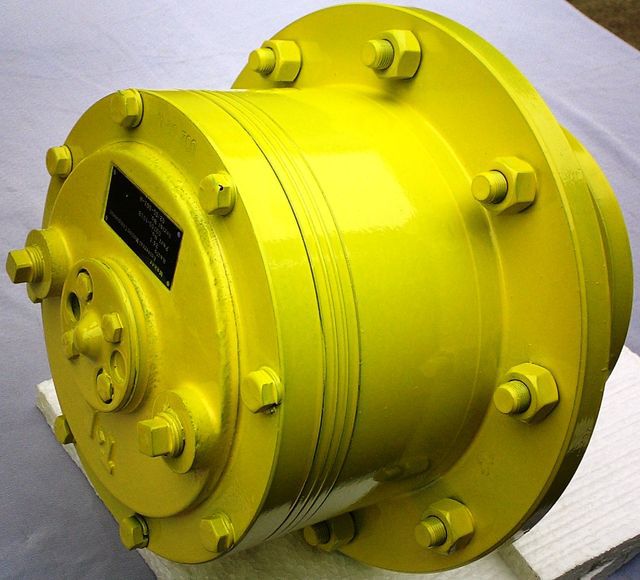

Planetary Wheel Hub

1:8 reduction, quick disengage free wheeling, Very heavy duty, takes 1" 6B spline shaft hyd motors.

no brakes

AHPWDN601L7-2NB

with brakes

AHPWDB565CM5

Planetary Wheel Hub

18.6:1 reduction, free wheeling, Very heavy duty, takes 1" 6B spline shaft hyd motors.

GBEP60218SA6BCH

Break-away Tip

poppet seal

Male - 1/2"BSP

HFTM12CH

Female - 1/2"BSP

HFBF12CH
