Squirrel Options;        Air Compressors & Tools,            Picking Bags,

Lights,             Cages,             Drive Wheels,               Engines & Fuel Tanks

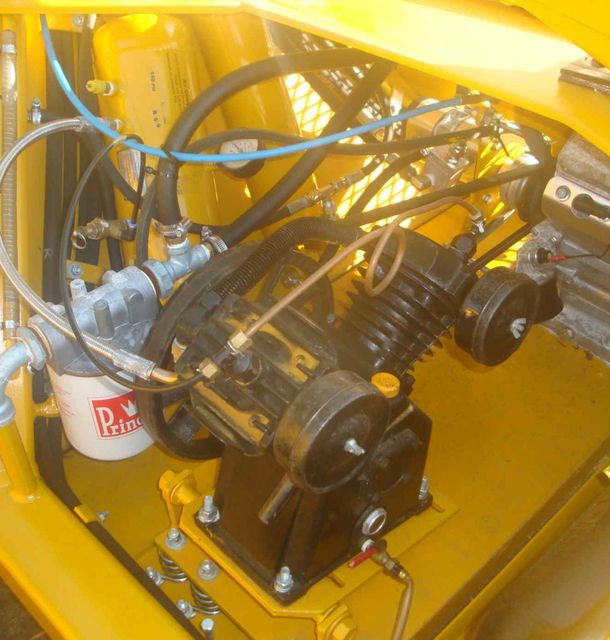

comp12.JPG - large

Air Compressor

13 cfm

Cast iron piston air pump; single stage with head unloader valve;145 psi max. Quality made, heavy cast iron flywheel, ball bearings on crank shaft ends, slow RPM, stainless steel valves, steel intake filter with paper air cleaner element, good quality oil level sighter & spring loaded ball sump breather, This comes with a medeam capacity air tank . The compressor is mounted on a pivoting base for simple, fast V Belt adjustment.

sql_354.jpg - large

Air Compressor

22 cfm

Cast iron piston air pump; single stage with head unloader valve;145 psi max. Quality made, heavy cast iron flywheel, ball bearings on crank shaft ends, slow RPM, stainless steel valves,

steel intake filter with paper air cleaner element, good quality oil level sighter & spring loaded ball sump breather,

This comes with a large capacity air tank. The compressor is mounted on a pivoting base for simple, fast V Belt adjustment.

sql_357.jpg - largeAir Compressor

30 cfm

Two stage heavy duty cast iron compressor with head unloading valves is recommended. With this option the engine is upgraded from a 16HP to 21 HP and is fitted with a large capacity air tank and lubricator. The compressor is mounted on a pivoting base for simple, fast V Belt adjustment.

This option is not available on the 35 5, 456, 536 & 656 SQUIRRELs

sqairtank.JPG - large50 lt air tank

Required if using air chainsaws. Comes standard when ordering the 22cfm air compressor as an optional extra on 355, 536 and 656 models.

 sql_358.jpg - largeAir Chainsaws

Pistol grip and telescopic extensions.

When using air chainsaws, additional oil lubrication is required for the chain.  We make a holding rack which holds oil.  Each time the saw is replaced in the rack it receives additional lubrication.



sqopt5.JPG - large

Chain saw rack

Chain saws are lightweight



This is  standard or fibreglass coated for low voltage insulated Squirrels.

sqo15.jpg - largeHydraulic Outlets in cage

When using hydraulic pruning tools hydraulic outlets are required. We fit 3/8"quick disconnect release couplings, bypass valve and relief valve to the cage to protect the hydraulic tool.



 Picking Bag - Standard

 squirr49.jpg - largeThe standard picking bag is fully padded with multiple filling stages and a drawstring to eliminate bruising - only requiring four bags to fill one bin.



sql_351.jpg - largePicking Bag - Deluxe

The New Deluxe picking bag (2016) is fully padded with four filling stages, and offers added protection from limbs by a steel cover which eliminates all bruising The bag fully retrackes insine the  bottom of the frame - requiring 5 to 6 bags to fill one bin.

 sql_359.jpg - largeMutiple Crate Holder

Holds up to five 22lt crates. Empty crates are stored in the holding frame behind the operator. The first and successive crates are filled and lowered until the holder is full. Full crates are then lowered through the bottom of the holder.

 crate.jpg - large

Empty Crate Holder

Empty crates are stored in the holding frame behind the operator.  This is standard with the Multiple Crate Holder

PICT0112.JPG - largePruning Tray

Thair is a range of trays that can be bolted on the front or sides of the Squirrel cage.

squirr15.jpg - large

squirr14.jpg - large



3 Trays for Erecting Pernement Canapys

One left hand deep tray to hold 1m cabel splicing joiners. One right hand to hold 0.5m plastick cabel netting clips. One front to hold all other tools.

sqo14.JPG - largeTray for Generator

To hold a generator on a 655 or 805 with power cood to cage fo 240V tools. Generator Start & Stop from cage.

 DSC01812.JPG - largeBin Forks

Lift 600kg bins, operated from cage.

This option is only for  53 6LB & 65 6LB SQUIRRELS



sql12.jpg - largeDual drive wheels

Dual drive wheels provide maximum traction and stability. This option is recommended when working in very soft or steep ground conditions.

sq31x1550x15.jpg - large

15.5" Wide Drive Wheels

31x1550x15x 8 ply wheels provide maximum traction and stability. This option is recommended when working in very soft or steep ground conditions.  When these are fitted the caster wheel is also raised. The outside width of the tyres do not change.

sqo13.JPG - largeRocker Bogey drive wheels

This option provides the best traction and stability. The engine must be upgraded to 21hp.

 sq15.jpg - large

Hydraulic wheel shift

The drive wheels are hydraulically extended and retracted for transport. Wheels are pushed out and held under pressure as the Squirrel is driven along (approx 10 metres). By switching a hydraulic valve, wheels are retracted in the same manner. This function is fast, safe and foolproof.

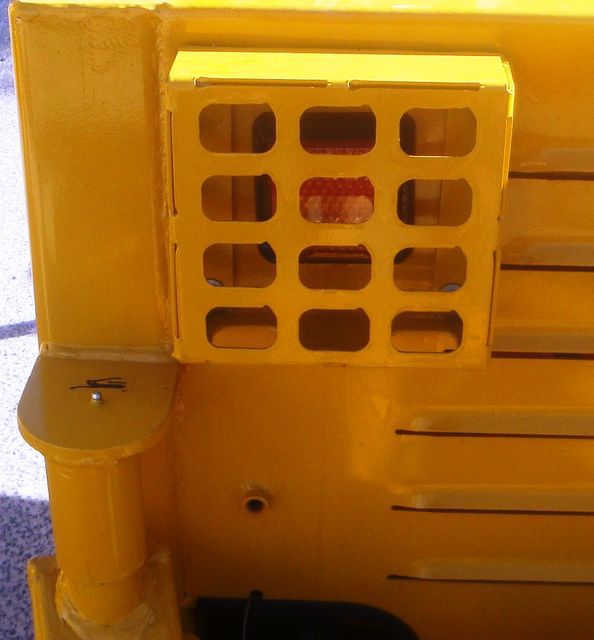

sqopt1.JPG - large

Tail lights

Tail lights (LED) are fully protected from prunings. They are required if working on the roadside or towing along roads.

sqo12.JPG - largeAmber flashing Beacon

Amber light is fully protected from falling debris. This option is recommended if working on the roadside or industrial sites. Some applications may require two lights.

squirr63.jpg - largeTwo man cage

Two man cage with hand controls provides ample room for two people. Three tool trays are incorporated into the front & rear of the cage. This is ideal for hire fleets and construction work. The cage hydraulically rotates 45º left and 45º right. Controls are directly mounted, allowing the operator to phase all movements. This option is available only on 536LB, 656LB and 80 5 Squirrel.

This option is not available in low voltage insulation.

Image-12.JPG - largeHand Controls One Man Cage

Single man cage with hand controls. This is ideal for hire fleets and industrial applications. The cage hydraulically rotates 60º left and 60º right. Controls are directly mounted, allowing the operator to phase all movements.  Not available with foot controls.

sqo10.JPG - largeLow voltage insulation

Tested and certified to AS1418.10. Includes fibreglass coated cage, boom and stabilizer bar; insulated hydraulic hoses and cage pivots.  There are multiple points of insulation joints so good insulation is maintained. The Squirrel cage still has safe, fast rear access through a gate - no climbing over the top of the cage. Recommended for street tree pruning near power lines.



 .

eng21hp.JPG - large

Vangard 21HP Petrol Engine

The standarrd engine is a 16hp v-twin Vanguard.  Some applications require extra horsepower so recommend a 21hp v-twin Vanguard petrol.

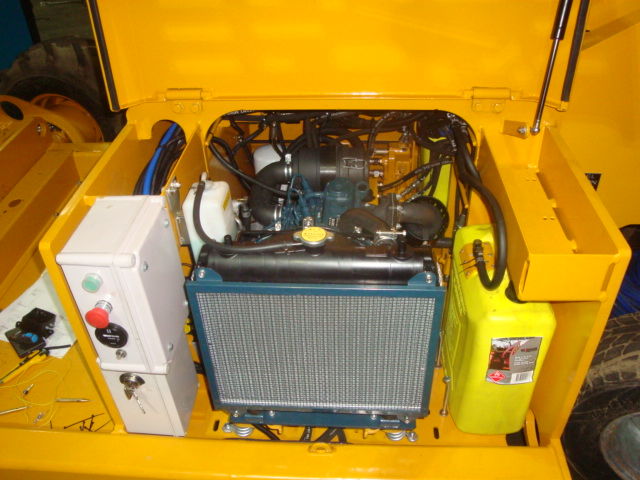

Kubota D902 23hp diesel engine



The Kubota D902  3 cylinder water cooled diesel engine provides a reliable, efficient alternative to petrol for most applications and has low noise & vibration levels for maximum operator comfort.

 This option is not available on

35 5, SQUIRRELS









Other Squirrel Models - Click on the picture to go to that page

Squirrel 355 SD 3.5m



Squirrel 505 SD 5.0m

Squirrel 536 LB SD     5.3m

Squirrel 656 LB SD       6.5m

Squirrel 655 SD   6.5m

Squirrel 80 5 SD   8.0m

squ_or1.jpg - large sq5051.jpg - largesq5361758.JPG - largesq6566.JPG - largesqu6551.jpg - largesq8050221.jpg - large

Squirrel  Foot Controls



Squirrel Options



Hire Squirrels



Other Squirrels



Squirrel Trailer

Operating Requirements


squarrelfootcontrols.jpg - largesqo17.JPG - small



137214185813721025211.jpg - large

OPS3.jpg - large



squirreltrailer.jpg - large
wa_ewp1.jpg - small

Disclaimer : The pictures and information are a guide only.  Specifications are subject to change without notice and without liability expressed or implied.
